The Wheel Type Compost Turner is a highly efficient organic waste treatment device specifically designed for large-span fermentation troughs. It is widely used in the aerobic fermentation of organic materials such as livestock and poultry manure, sludge, crop straw, and food waste.

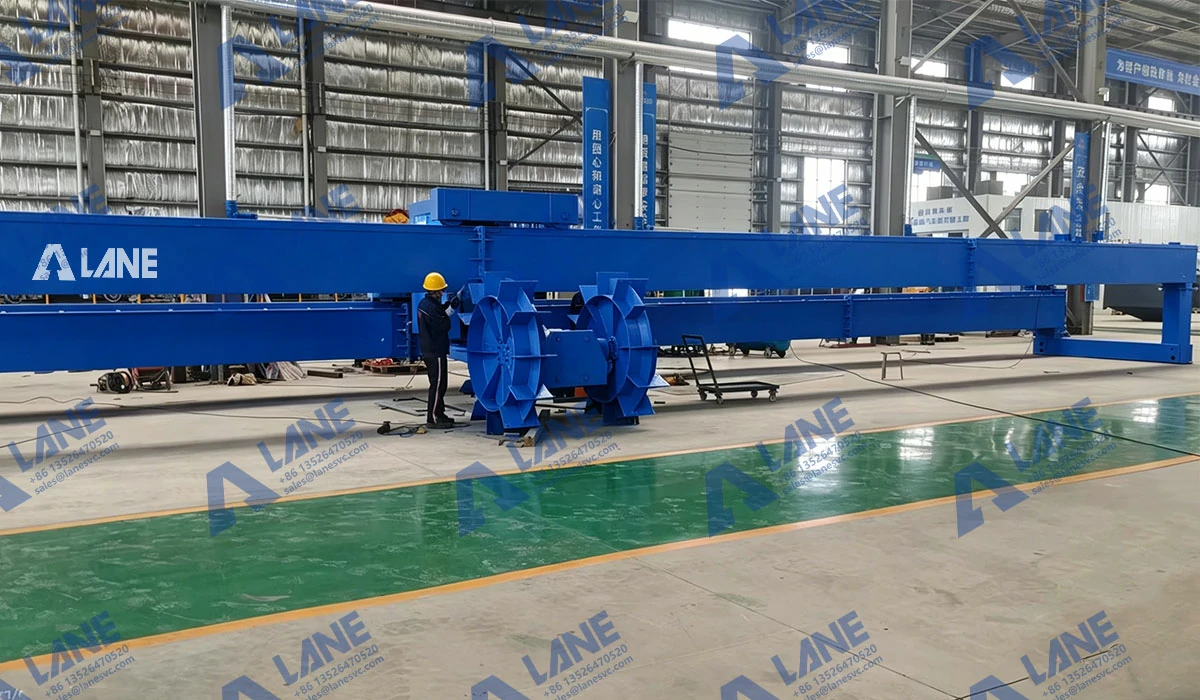

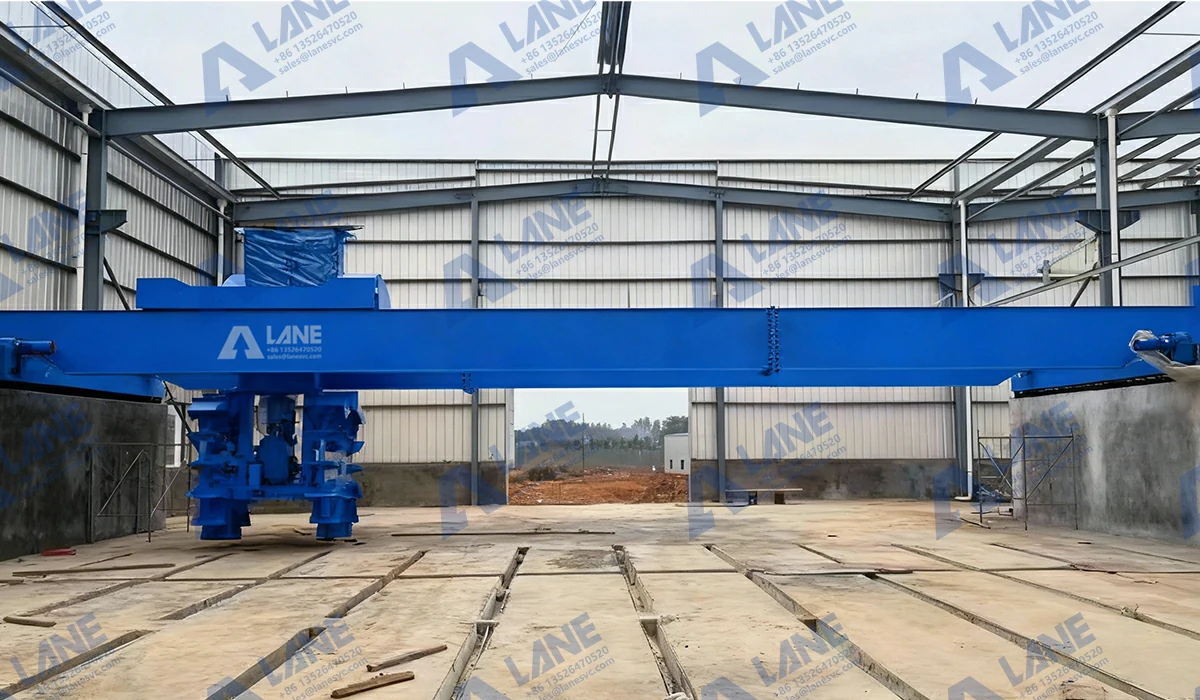

The Wheel Type Compost Turner operates along tracks within the fermentation trough via a large wheel-type structure, continuously turning, breaking up, and aerating the material, thereby significantly improving fermentation efficiency and enabling large-scale, industrial production of organic fertilizer.
Compared to traditional trough-type compost turners, the wheel-type compost turner is better suited for extra-wide fermentation troughs (5m–25m) and is particularly ideal for large-scale organic fertilizer production lines or environmental treatment projects.
| Model | LAF-10Y | LAF-15Y | LAF-20Y |
| Fermentation Groove Width (m) | 10 | 15 | 20 |
| Turning Depth (mm) | 1200–1500 | 1200–1500 | 1200–1500 |
| Processing Capacity (m³/h) | 800–1200 | 1200–1800 | 1800–2500 |
| Traveling Speed (m/min) | 2–6 | 2–6 | 2–6 |
| Main Motor Power (kW) | 45–55 | 55–75 | 75–110 |
| Turning Wheel Diameter (mm) | 2000–2500 | 2500–3000 | 3000–3500 |
| Installation Type | Rail-mounted | Rail-mounted | Rail-mounted |
If you have any special requirements, we can customize our products to meet your needs.

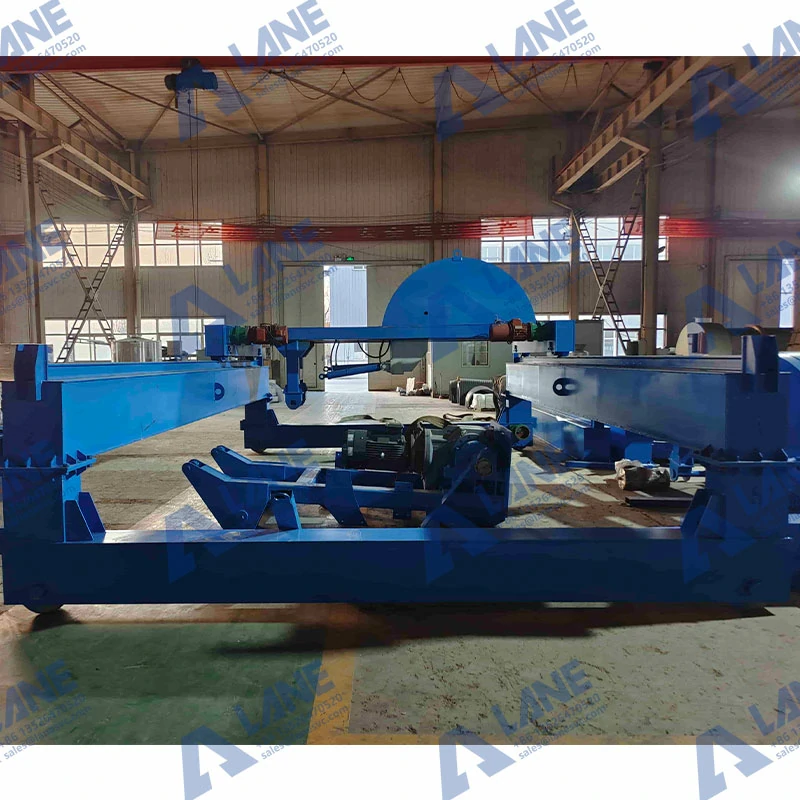

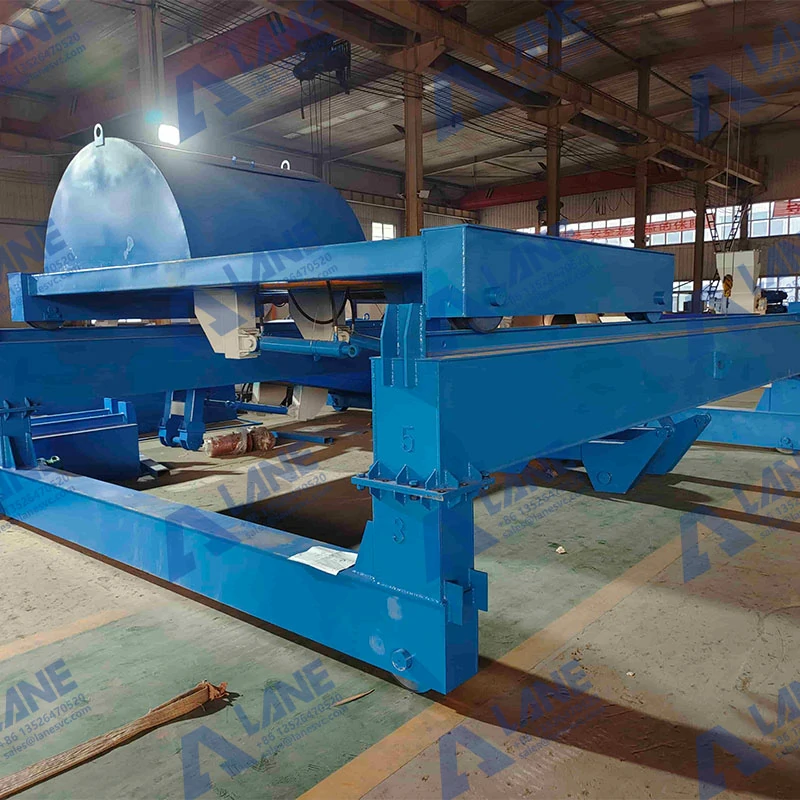

1. Main Traveling Structure
Comprising a drive motor, a reducer, and travel wheels, this structure enables the equipment to operate stably along the fermentation trough.

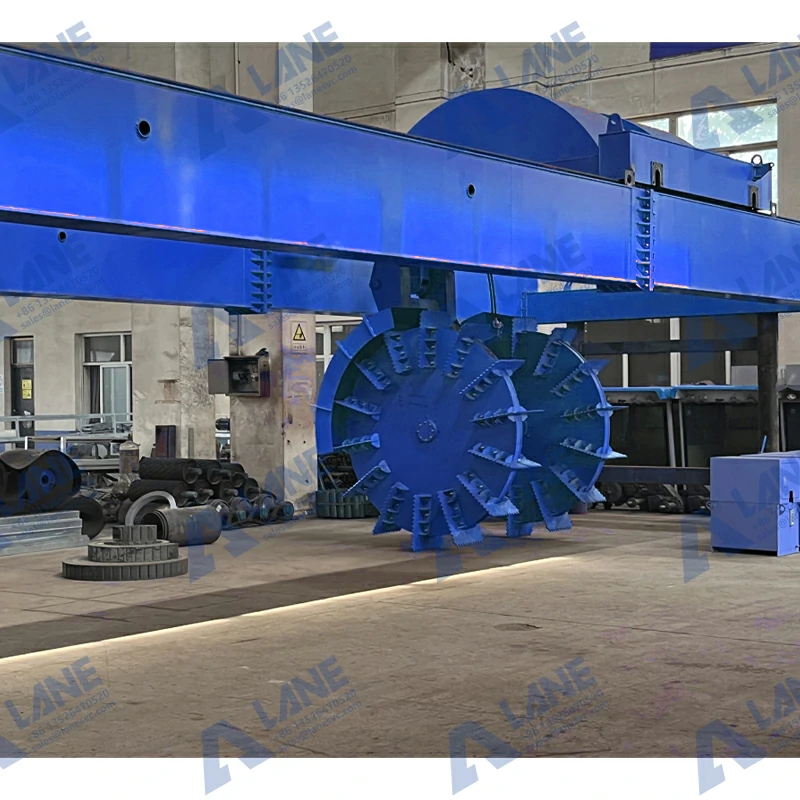

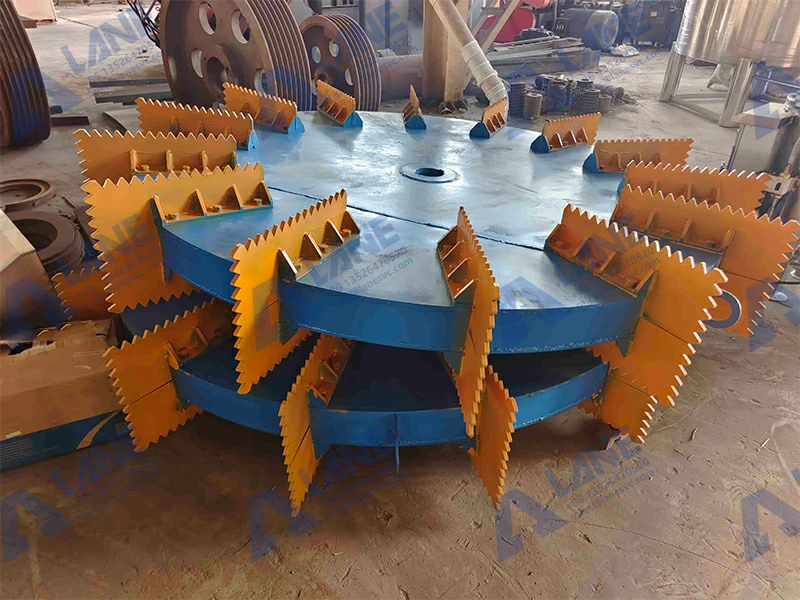

2. Turning Wheel System
The core component, featuring multiple sets of turning tines mounted on a large-diameter wheel, which rotates to turn, break up, and distribute the material.
3. Lifting and Adjustment System
Used to adjust the height of the turntable to accommodate different fermentation stages and material thicknesses.
4. Electrical Control System
Includes a control cabinet, variable frequency drive, and other components, enabling automated control of the equipment and adjustment of operating parameters.

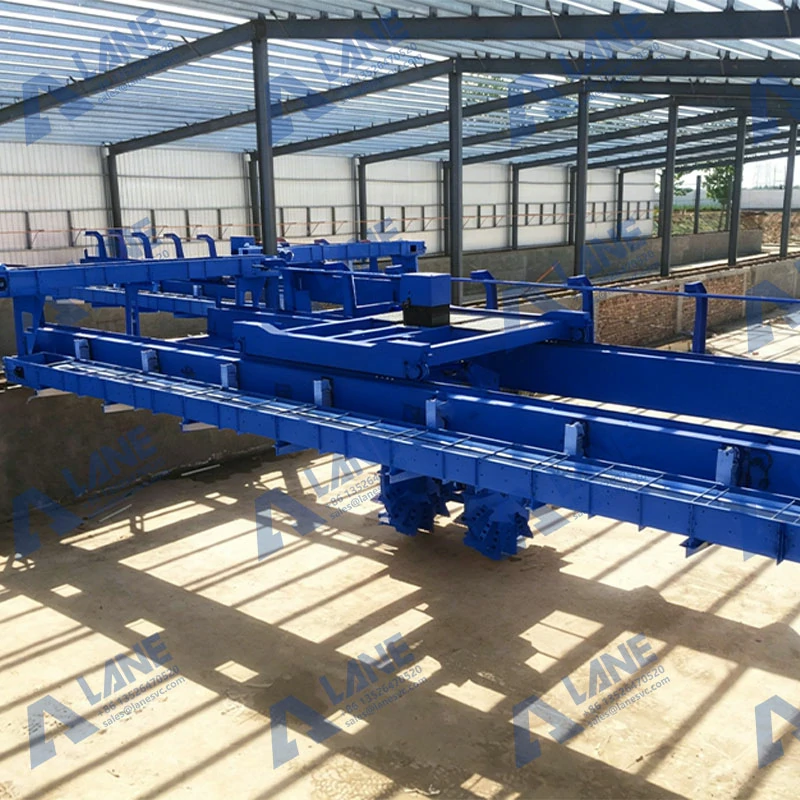

5. Guide Rails and Support Structure
Ensures stable operation of the equipment above the fermentation trough, suitable for long-distance continuous operation.
The Role of Wheel Type Compost Turner in Organic Fertilizer Production:
1. Raw Material Pretreatment
Mix livestock manure, crop straw, microbial agents, and other materials in the appropriate proportions, and adjust the moisture content (typically 55%–65%).
2. Loading Material into Fermentation Tanks
Spread the mixed material evenly into fermentation tanks, typically stacking it to a height of 1.2–1.8 meters.
3. Disc Tumbler Operation
The equipment runs along tracks, and the rotating disc turns the material to achieve:
4. High-Temperature Fermentation Stage
The material temperature rises to 55–65°C, effectively killing pathogens and insect eggs.
5. Maturation and Post-Processing
After fermentation is complete, the material proceeds to subsequent processes such as crushing, screening, and granulation.
1. Suitable for Extra-Wide Fermentation Tanks
Capable of handling spans exceeding 10 meters, significantly increasing processing capacity per unit area.
2. High Turning Efficiency
The rotary structure provides powerful turning force for more thorough mixing, shortening the fermentation cycle by over 30%.
3. High degree of automation
Supports remote control and automatic operation, reducing labor requirements.
4. Excellent fermentation uniformity
Deep turning and wide coverage eliminate dead zones, improving product quality.
5. Stable operation and long service life
Simple structure and even load distribution make it suitable for long-term continuous operation.
6. Environmentally friendly and energy-efficient
Reduces odor generation, improves resource utilization, and meets environmental protection requirements.
