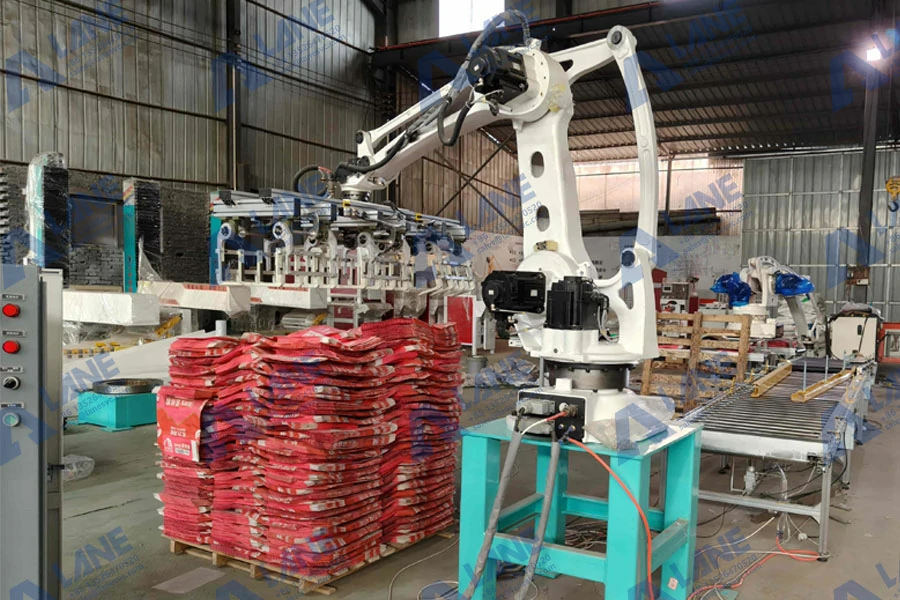

A robotic palletizer is an automated palletizing system based on industrial robotics technology, widely used in industries such as fertilizers, chemicals, food, and building materials. Using high-precision robotic arms, this equipment automatically stacks pre-packaged bagged or boxed products onto pallets according to preset patterns, enabling efficient, stable, and intelligent palletizing operations.
Compared to traditional palletizing methods, robotic palletizers offer greater flexibility and adaptability, easily handling the palletizing needs of products with multiple specifications and sizes, making them a vital component of smart fertilizer production line.
The robotic palletizing system typically consists of the following components:

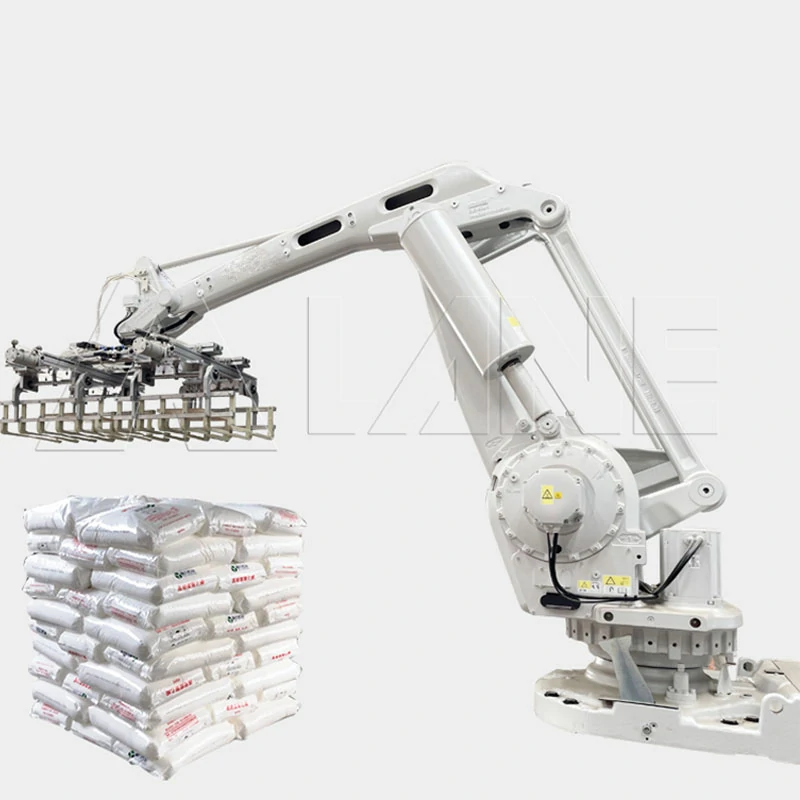

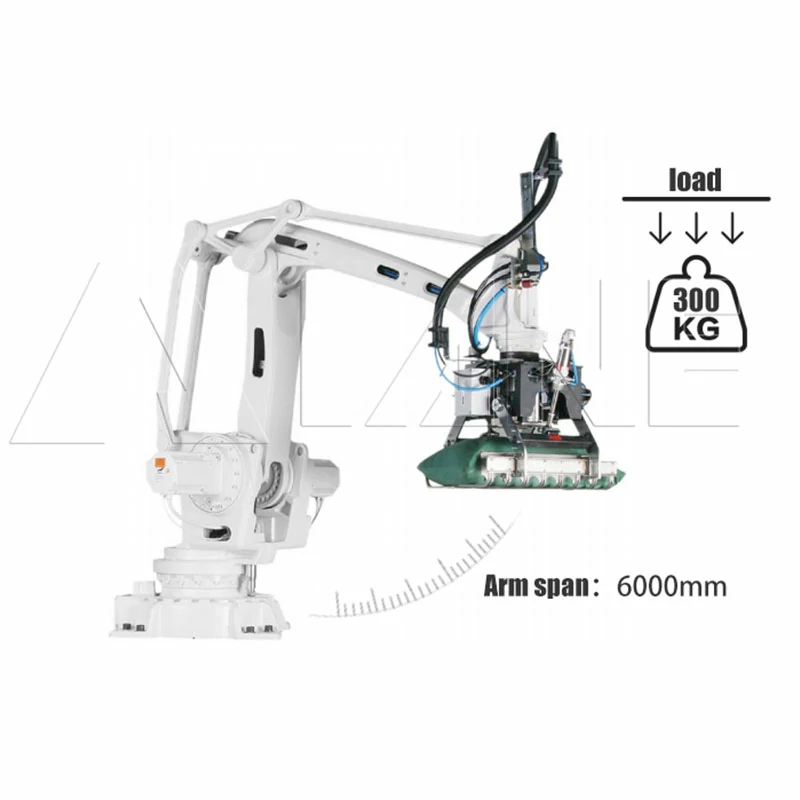

1. Industrial Robot Arm
The core execution unit (typically a 4-axis or 6-axis robot)
Features high precision and high repeatability
Supports programming of various trajectories and movements

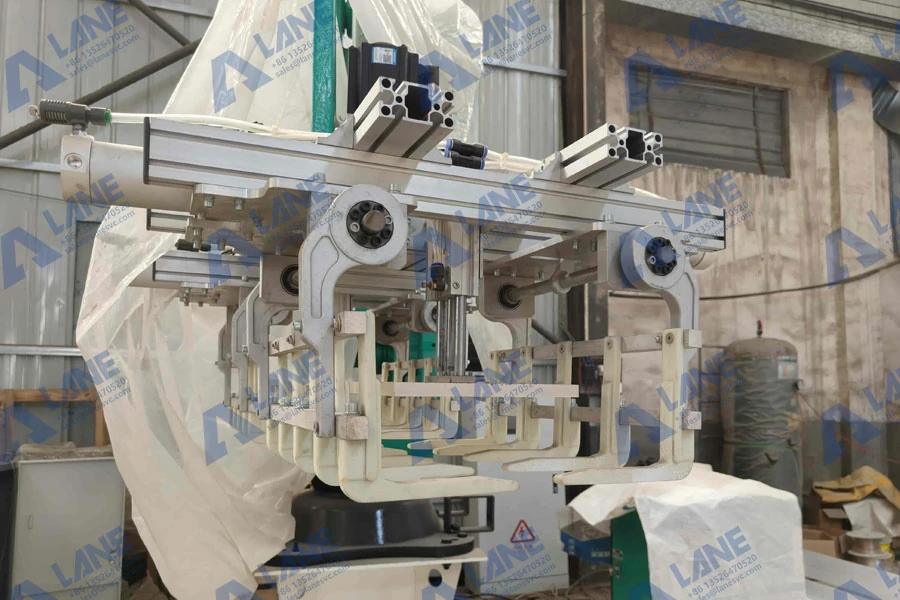

2. End Effector / Gripper
Customized according to material type (clamp-type, suction-cup-type, or combined clamp-and-suction-type)
Suitable for various packaging formats such as bagged fertilizer, cartons, and drums
3. Conveyor System
Transports materials to the gripping position
Can be integrated with upstream equipment such as packaging machines and sealing machines

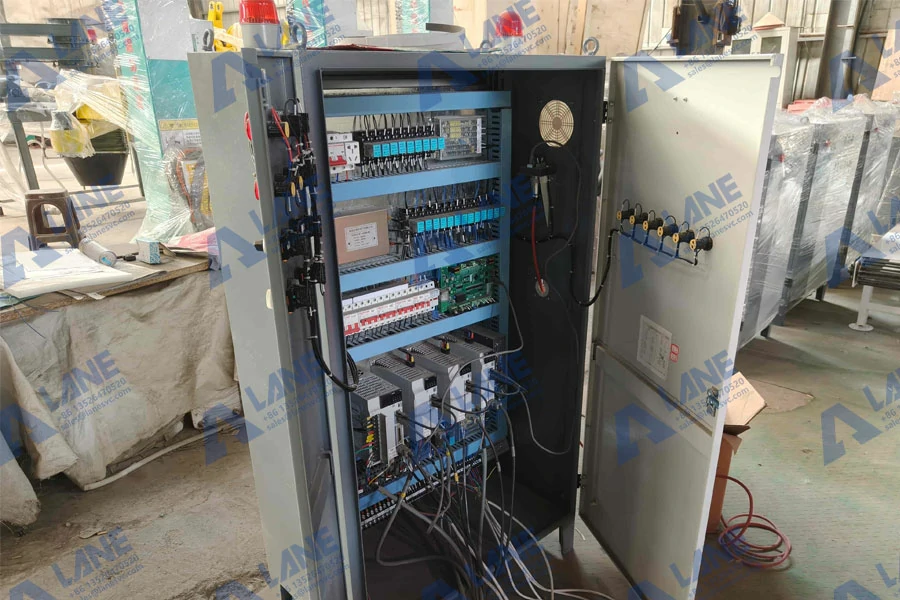

4. Control System
PLC + touchscreen control
Supports palletizing mode settings, parameter adjustments, and fault alarms
5. Pallet Magazine and Conveyor
Automatically supplies empty pallets
Optional automatic pallet change system to enhance automation
6. Safety System
Includes safety fences, light curtains, safety doors, etc.
Ensures safe equipment operation and complies with international standards
1. Material Conveyance
Finished, packaged products enter the palletizing area via a conveyor belt.
2. Position Detection
Sensors or a vision system identify the position and status of the materials.
3. Product Gripping
The robotic arm precisely grips the products using a gripper, following a preset program.

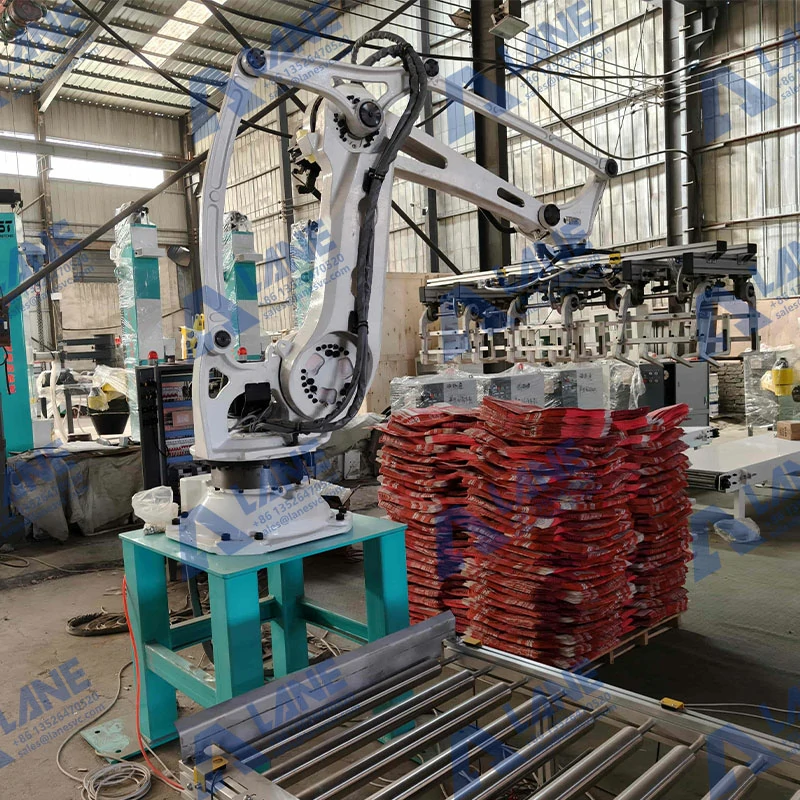

4. Palletizing and Stacking
Products are neatly stacked onto pallets according to preset stacking patterns (e.g., interleaved stacking, tiered stacking).
5. Pallet Output
Once palletizing is complete, the full pallet of products is transported via the conveyor system to the stretch wrapping or warehousing stage.
6. Continuous Operation
The system automatically replaces the pallet with a new one and proceeds to the next palletizing cycle.
1. High Automation
Reduces manual labor, lowers physical strain, and improves production efficiency.
2. High Flexibility
Adaptable to products of various specifications and packaging formats; palletizing schemes can be switched with a single click.
3. Neat and Stable Palletizing
High repeatability accuracy ensures neat stacks, facilitating transportation and warehousing.
4. Labor Cost Savings
A single machine can replace 2–4 workers, resulting in lower long-term operating costs.
5. Stable and Reliable Operation
Industrial robot design ensures low failure rates and supports extended continuous operation.
6. Intelligent Control
Supports storage of multiple palletizing modes, with optional remote maintenance and data monitoring.
7. High Safety
Comprehensive safety protection systems ensure the safety of both personnel and equipment.
Lane offers product customization and technical guidance to ensure smooth equipment commissioning. Contact us for more information about our robotic palletizers!
